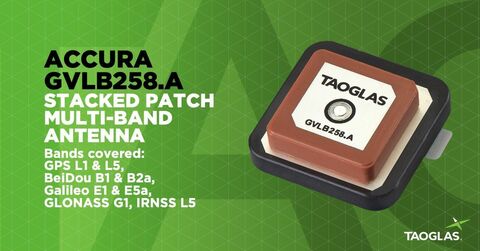

GNSS Stacked Patch Multi-Band Antenna

01/10/2021

The Taoglas Accura GVLB258.A, is a dual-band GNSS L1/L5, high-performance antenna for high precision GNSS accuracy and fast positioning. It utilizes a 25*25*8mm advanced wide-band dual-stacked ceramic patch antenna with optimized gain for GPS L1/L5, Galileo, GLONASS and BeiDou bands.

The GVLB258.A has been tuned and tested on a 70 x 70 mm ground plane and exhibits excellent radiation patterns. The GVLB258.A has been optimised to cover the bands required for the next generation of L1/L5 GNSS receivers that are currently on the market.

Main Features

  • Single Feed Stacked Patch Assembly Covering Bands:
    - GPS L1 & L5
    - BeiDou B1
    - Galileo E1 & E5a
    - GLONASS G1
    - IRNSS L5
  • Pin Mount
  • Dimensions: 25*25*8.12mm
  • RoHS & REACH Compliant
Documents Tech question
Taoglas GVLB258

GNSS Stacked Patch Multi-Band Antenna

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 22 Agriculture

    Agriculture

  • 18 Traffic Transportation

    Traffic & Transportation

  • 25 Mobile Wearables

    Mobile & Wearables

  • 12 Security Surveillance

    Security & Surveillance

Technologies

  • Shutterstock 1226404321

    Antennas

Taoglas

Taoglas is the world’s leading provider of next-generation IoT solutions, combining the latest in high-performance RF antenna with advanced positioning, imaging, audio and artificial intelligence technologies for companies with unique IoT challenges.

Read more
Taoglas Logo

Documents

  • Taoglas Accura GNSS stacked patch antenna GVLB258 A Datasheet
