- Segment: 368 outputs
Common: 1 output
- Static driving for high contrast
- 16-level grayscale display enabled by PWM
- Display safety functions
This browser is not fully supported.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.

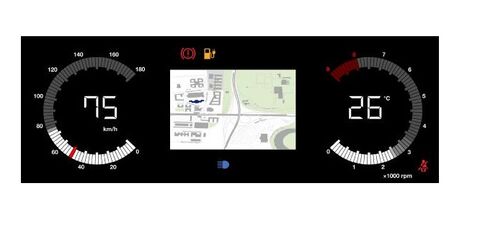

Epson S1D15106 can provide the look of a large, fully digital cluster utilising its 368 segment drivers in combination with only a small colour TFT display.
The S1D15106 is a segment LCD driver that can be directly connected to a microcontroller. Image data transferred from the microcontroller can be displayed on the segment display without an external memory. Static driving enables high contrast, while pulse-width modulation (PWM) enables the 16-level grayscale segment display, making this driver ideal for the visualization of things such as speedometers and tachometers
