- 10W Output Power
- Miniature SIP Package
- Ultra-Wide 4:1 Input Range
- Short Circuit Protection
- 2.25kV I/O Isolation
- 14 Standard Models
- Remote On/Off Control
- -40°C to +85°C Operation
- Single & Dual Outputs
This browser is not fully supported.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.

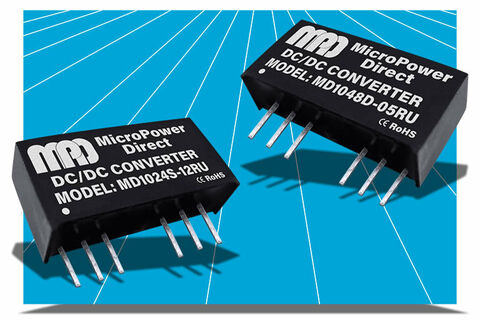

The MD1000RU series provides 10W of tightly regulated output power from an industry-standard SIP package. These low-cost single and dual output DC/DC converters provide the miniature size, reliable performance, high power density, and economy required by a very wide range of board-level power distribution applications.
Fourteen models operate from 4:1 inputs of 9 – 36 VDC, and 18 – 75 VDC, providing single and dual outputs of 5, 12, 15, 24, ±5, ±12 or ±15 VDC. Standard features include efficiency to 89% an input/output isolation of 2,250 VDC, a remote on/off control input, and low noise operation. All models are protected for over-voltage, over-current, and short circuit faults. The MTBF of the MD1000RU series (per MIL HDBK 217F) is over 1.9 Mhours.
MicroPower Direct ( MPD ) growth is driven by a commitment to delivering innovative, high quality power conversion products at the lowest possible prices.
